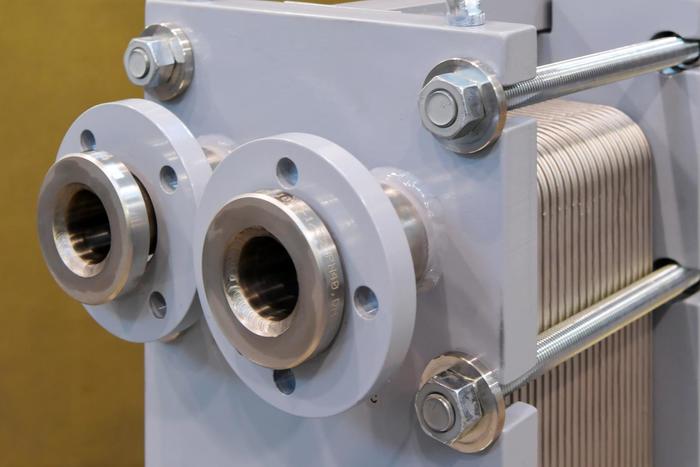

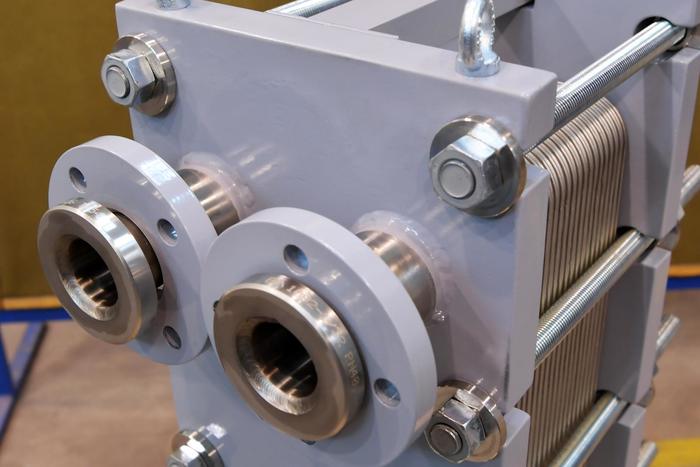

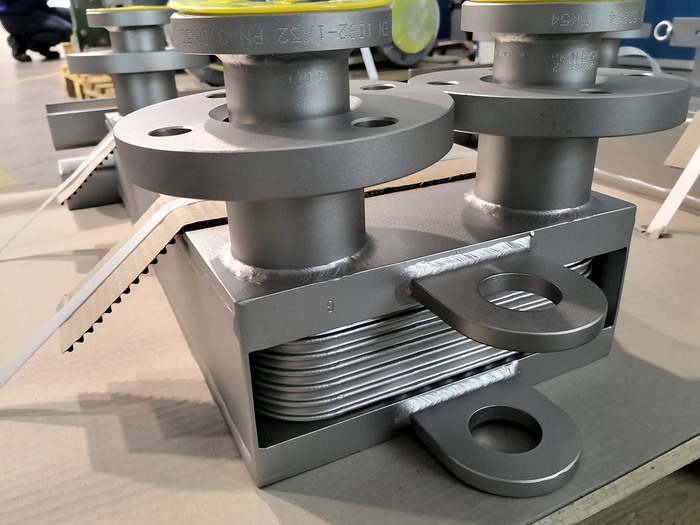

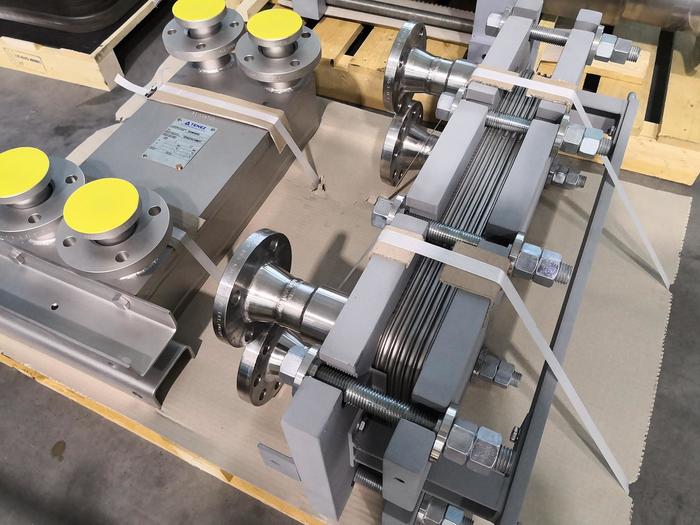

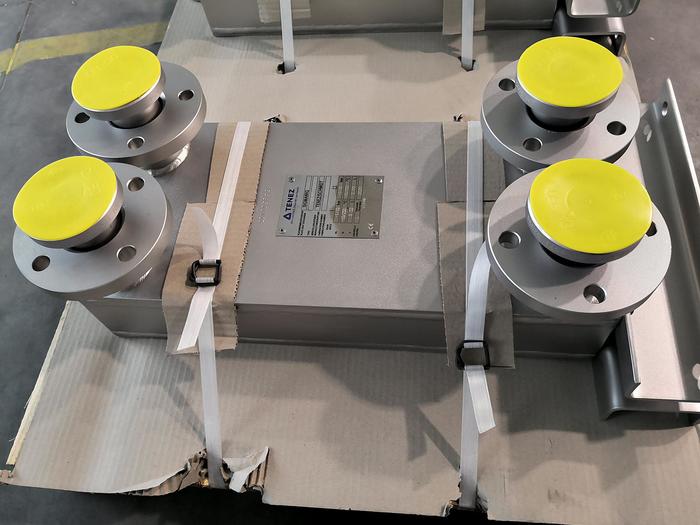

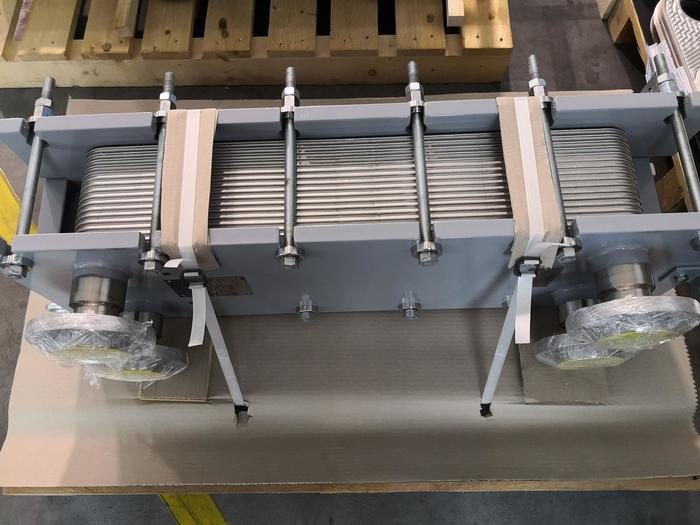

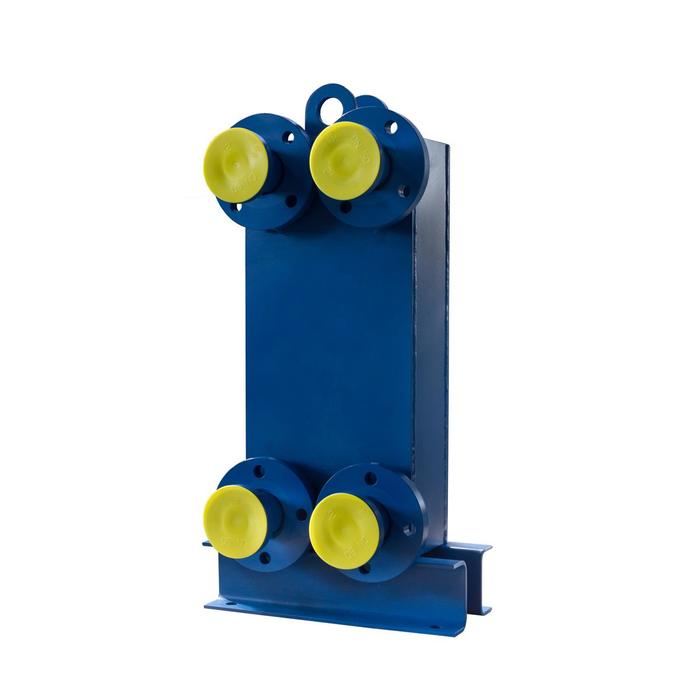

Welded heat exchanger model - ST12
Heat transfer area
2 – 16,5 m2
Max flow rate
35 m3/h

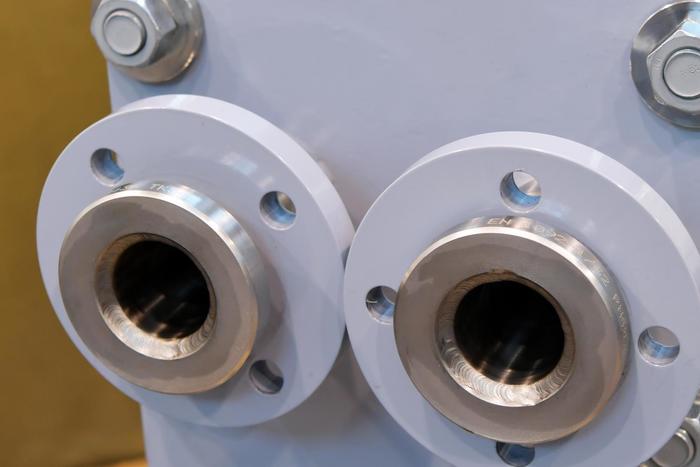

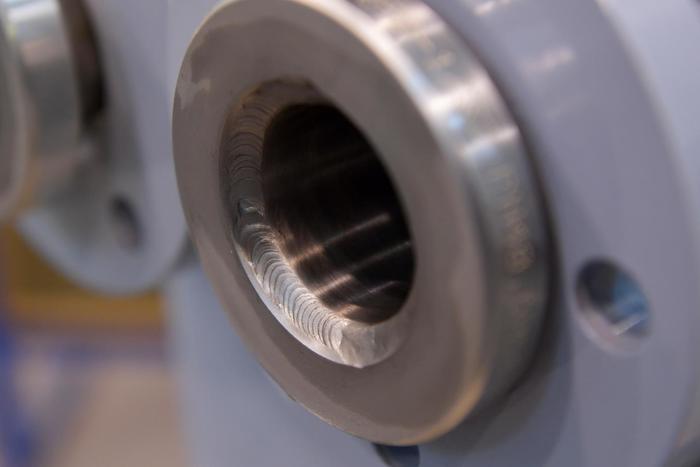

Connection
DN50 (threaded, flanges, clamp, O-ring, counterflanges, fitting ...)
Internal volume
1,9 - 16 ltr
Weight
100 - 177 kg

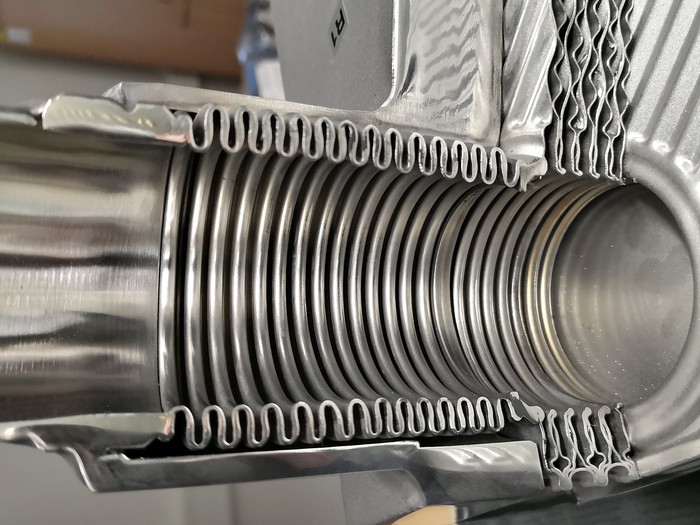

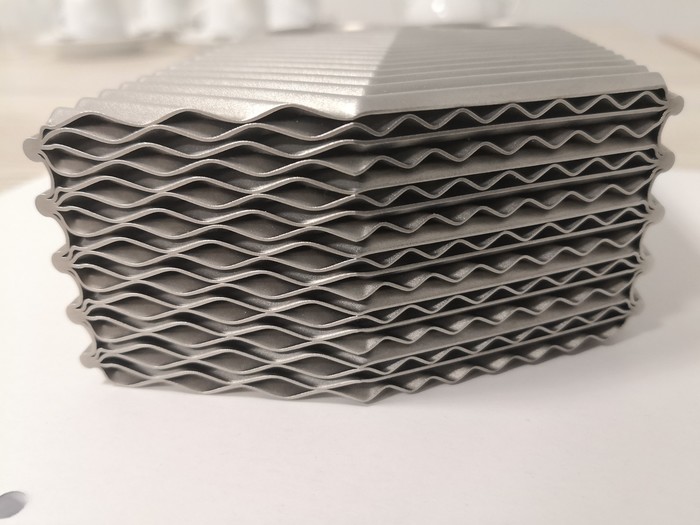

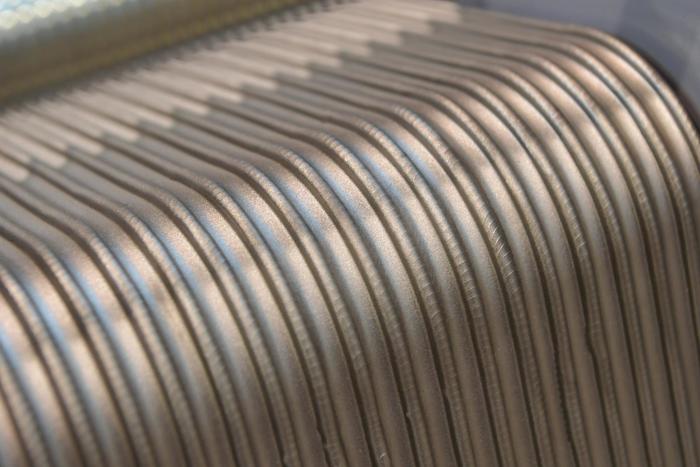

Description
The model ST12 heat exchanger from the Standard line product line uses a heat exchange area of up to 16.5 m2 with a maximum flow rate of 35 m3 per hour. It is an efficient model that can be used in many industrial segments. We will be happy to design and supply this heat exchanger for you. This type of heat exchanger can be offered with a maximum number of 120 plates.

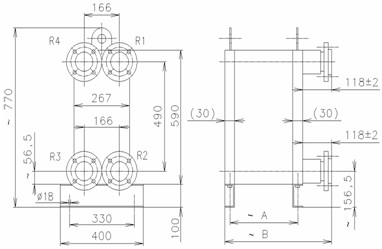

Technical specifications
| Number of plates | Area m2 | Weight Kg | Lenght A | Lenght B |
| 16 | 1,96 | 108 | 70 | 218 |
| 24 | 3,08 | 114 | 90 | 238 |
| 32 | 4,2 | 120 | 110 | 258 |
| 40 | 5,32 | 126 | 130 | 278 |
| 48 | 6,44 | 132 | 150 | 298 |
| 64 | 8,68 | 143 | 190 | 338 |
| 80 | 10,92 | 154 | 230 | 378 |
| 96 | 13,16 | 167 | 270 | 418 |
| 120 | 16,52 | 185 | 330 | 478 |
Applications
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
Material
We are able to offer the following material for the production of the ST12 welded heat exchanger.
Body of heat exchanger
- austenitic steel 1.4404, 1.4571
- superaustenitic steel 1.4539 or 1.4547
- nickel alloy 2.4819 (Hastelloy)
- titanium alloy 3.7025
- possibly according to the customer's wishes

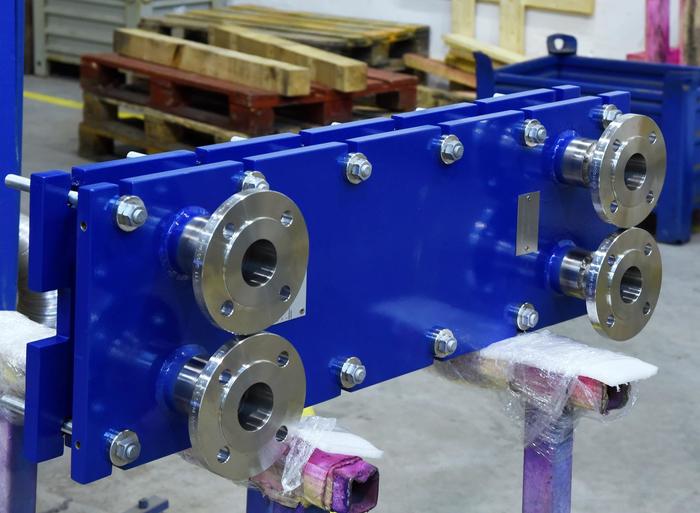

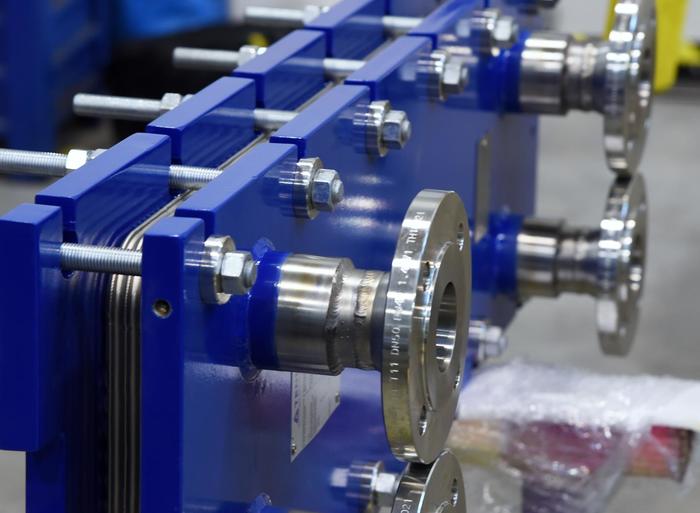

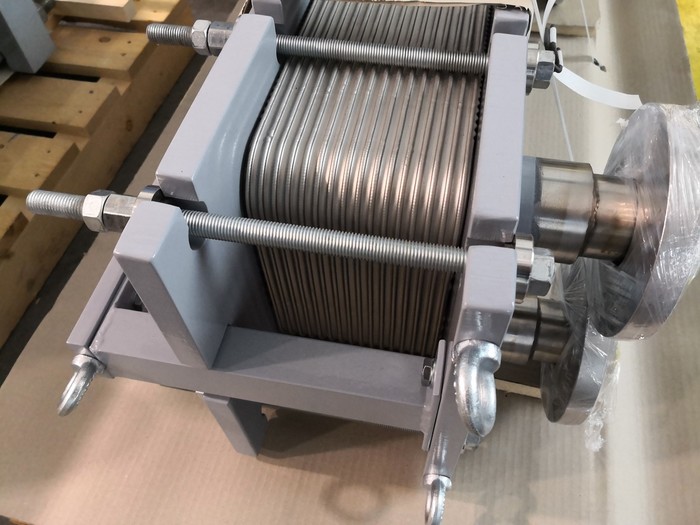

Frame of heat exchanger
- painted carbon steel, color RAL 7001
- austenitic steel 1.4571, surface ballotini
