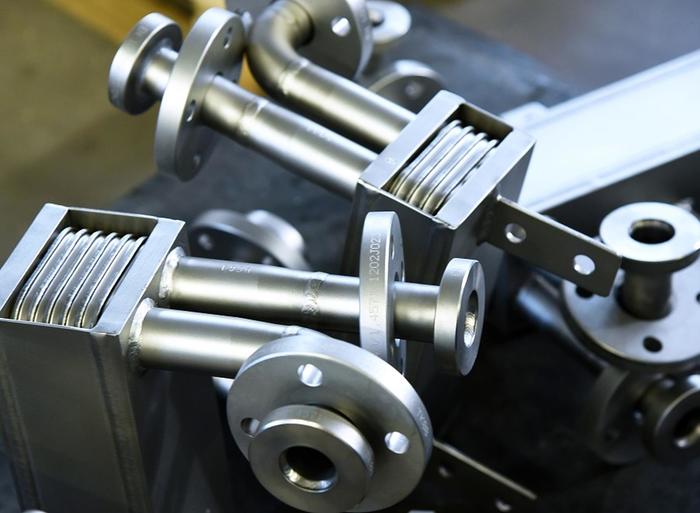

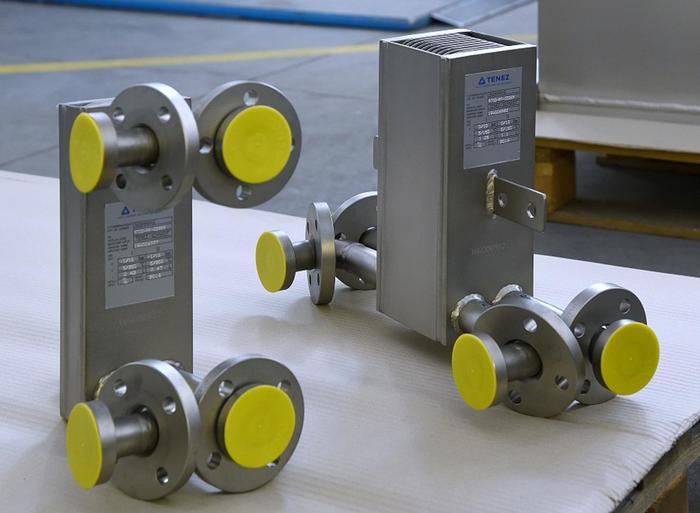

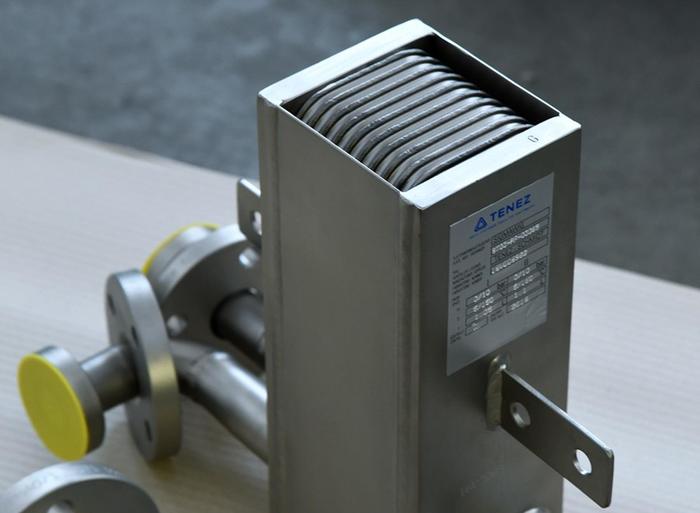

The model ST03 heat exchanger from the Standard line product line is the smallest model of heat exchanger that can be used in operation. With this heat exchanger, we emphasize the smallest possible occupied space with maximum heat transfer. The exchanger is high quality and efficient. It can be used in a number of industrial segments. The ST03 heat exchanger can be offered with a maximum number of 120 plates.
Number of plates |
Area m2
|
Weight Kg |
Lenght A |
12 | 0,253 | 14,6 | 46 |
16 | 0,345 | 15,3 | 56 |
24 | 0,529 | 16,8 | 76 |
32 | 0,713 | 18 | 96 |
40 | 0,897 | 19,5 | 116 |
48 | 1,081 | 20,9 | 136 |
64 | 1,449 | 23,8 | 176 |
80 | 1,817 | 26,7 | 216 |
96 | 2,185 | 29,5 | 256 |
120 | 2,737 | 33,4 | 316 |
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
We are able to offer the following quality materials for the production of ST03 heat exchangers.
austenitic steel 1.4404, 1.4571
superaustenitic steel 1.4539 or 1.454
nickel alloy 2.4819 (Hastelloy)
titanium alloy 3.702
possibly according to the customer's wishes
austenitic steel of grade 1.4571, surface ballotini
