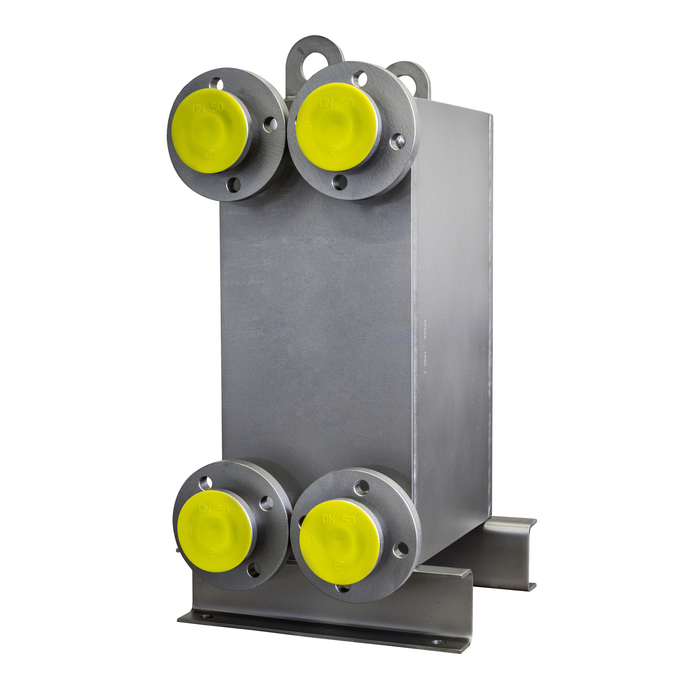

Welded heat exchanger model - ST18
Heat transfer area
3,4 – 25,3 m2
Max flow rate
35 m3/h
Connection
DN50 (threaded, flanges, clamp, O-ring, counterflanges, fitting ...)
Internal volume
2,5 – 21,7 ltr
Weight
136 - 247 kg
Description
The ST18 heat exchanger from the Standard line product line uses a heat exchange area of up to 25.3 m2 with a maximum flow rate of 35 m3 per hour. This model is highly efficient and finds application in a number of industries. This heat exchanger is durable, has a long service life and meets the demanding criteria of industrial operations. We produce the ST18 heat exchanger with a maximum amount of 120 heat exchange plates.

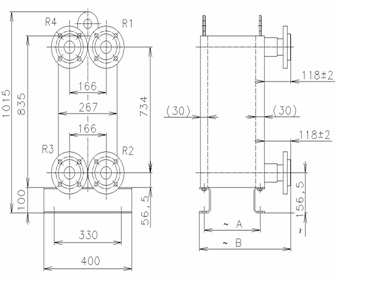

Technical specifications
|
Number of plates |
Area m2 |
Weight Kg |
Lenght A |
Lenght B |
| 16 | 3,21 | 148 | 70 | 218 |
| 24 | 4,93 | 157 | 90 | 238 |
| 32 | 6,64 | 166 | 110 | 258 |
| 40 | 8,35 | 176 | 130 | 278 |
| 48 | 10,07 | 185 | 150 | 298 |
| 64 | 13,49 | 203 | 190 | 338 |
| 80 | 16,92 | 221 | 230 | 378 |
| 96 | 20,35 | 239 | 270 | 418 |
| 120 | 25,49 | 267 | 330 | 478 |
Applications
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
Material
We are able to produce the welded ST18 heat exchanger from the following types of materials.
Body of heat exchanger
- austenitic steel 1.4404, 1.4571
- superaustenitic steel 1.4539 or 1.4547
- nickel alloy 2.4819 (Hastelloy)
- titanium alloy 3.7025
- possibly according to the customer's wishes

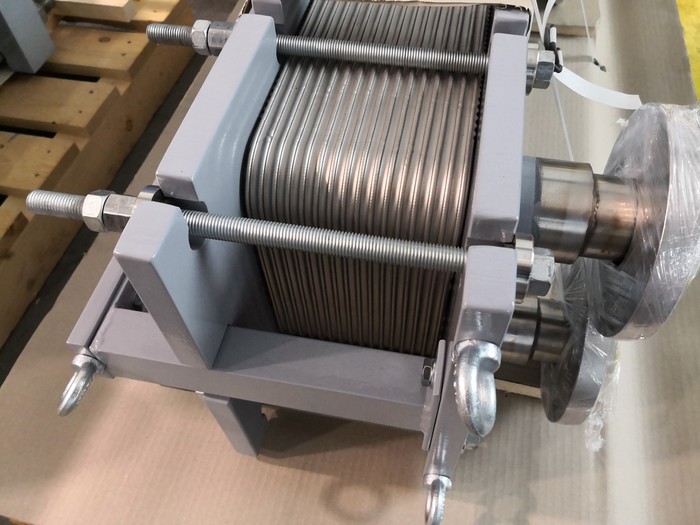

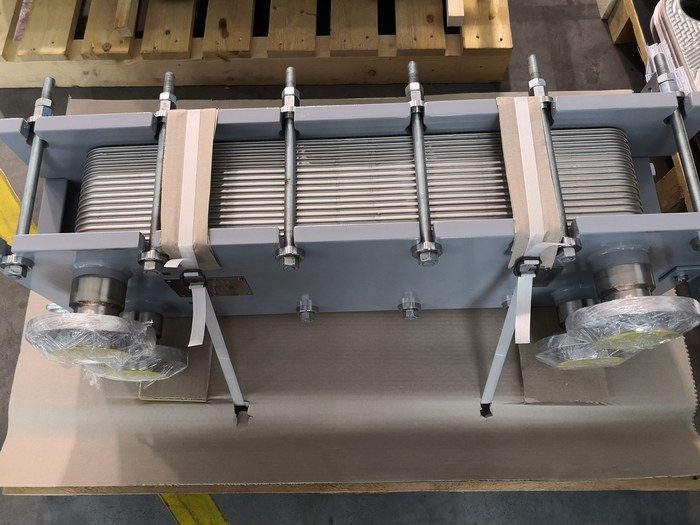

Frame of heat exchanger
- painted carbon steel, color RAL 7001
- austenitic steel 1.4571, surface ballotini
