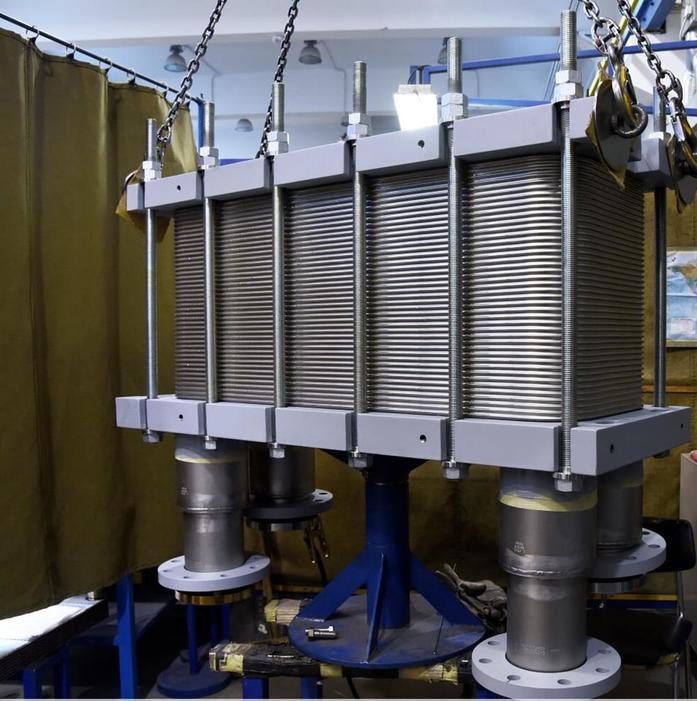

The ST40 heat exchanger from the Standard line product line is our the largest model among the standard heat exchangers we are able to produce. It has a maximum heat exchange area of almost 100 m2 and a maximum flow of up to 450 m3/h with a DN150 connection. It is possible to use a smaller type of DN100 connection. This exchanger is also characterized by long life, minimal maintenance and high durability. He can do the job even in the most demanding conditions. This type of exchanger can be manufactured with a maximum number of 200 plates.
Number of plates | Area m2 | Weight Kg | Lenght A | Lenght B |
16 | 6,9 | 696 | 107 | 624 |
24 | 10,6 | 720 | 132 | 649 |
32 | 14,3 | 742 | 156 | 674 |
40 | 17,9 | 765 | 181 | 699 |
48 | 21,6 | 790 | 206 | 723 |
64 | 29 | 835 | 256 | 773 |
80 | 36,3 | 880 | 305 | 823 |
96 | 43,7 | 925 | 355 | 872 |
120 | 54,8 | 993 | 429 | 947 |
144 |
65,8 |
1061 | 504 | 1021 |
160 | 73,2 | 1106 | 553 | 1071 |
176 | 80,5 | 1151 | 603 | 1120 |
200 | 91,6 | 1219 | 677 | 1195 |
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
We are able to produce the welded ST40 heat exchanger from the following types of materials.
