Welded heat exchanger model - T3

Heat transfer area

0,2 – 2,7 m2

Max flow rate

8,5 m3/h

Connection

DN25 (threaded, flanges, clamp, counterflanges, fitting ...)

Operating pressure

-1 / 25 bar

Max operating temperature

-100 / 300 °C

Internal volume

0,2 – 2,7 ltr

Weight

9 - 25 kg

Description

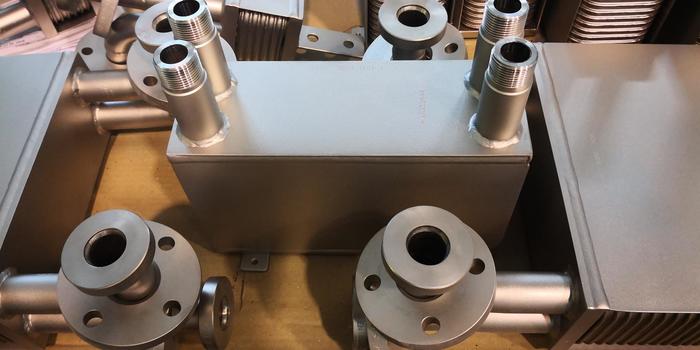

The T3 heat exchanger from the T-heat line product line is the smallest model in this series. It offers either the best possible heat transfer or the smallest possible pressure drop or their optimal combination. The heat transfer area is 2.7 m2. The heat exchanger withstands demanding operations has a long service life and is easy to maintain. We will be happy to design and supply the heat exchanger for you. The exchanger can be made with a maximum number of plates of 120 pieces.

Technical specifications

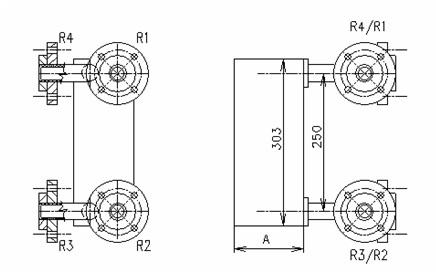

Number of plates	Area m2	Weight kg	Lenght A
12	0,253	14,6	46
16	0,345	15,3	56
24	0,529	16,8	76
32	0,713	18	96
40	0,897	19,5	116
48	1,081	20,9	136
64	1,449	23,8	176
80	1,817	26,7	216
96	2,185	29,5	256
120	2,737	33,4	316
